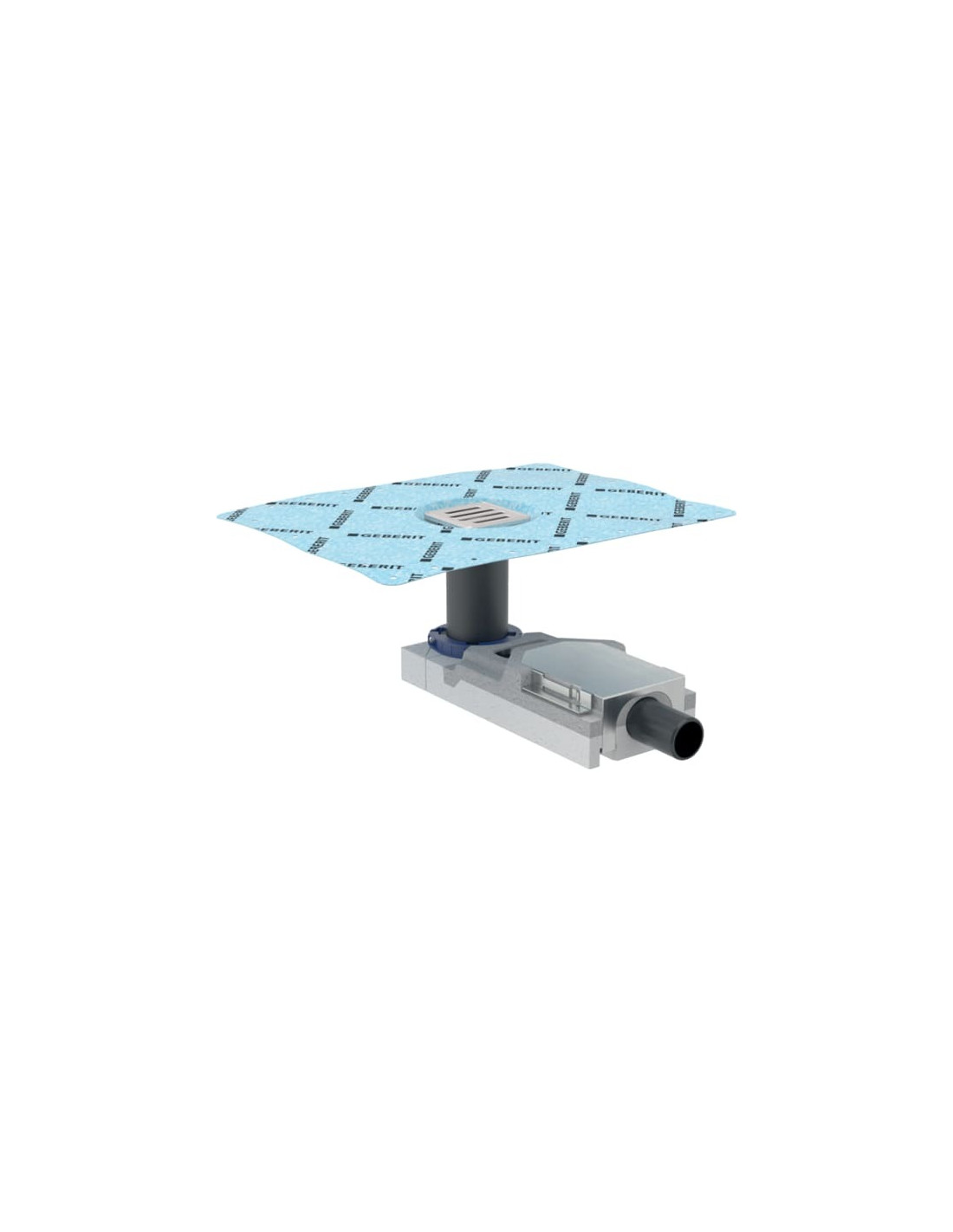

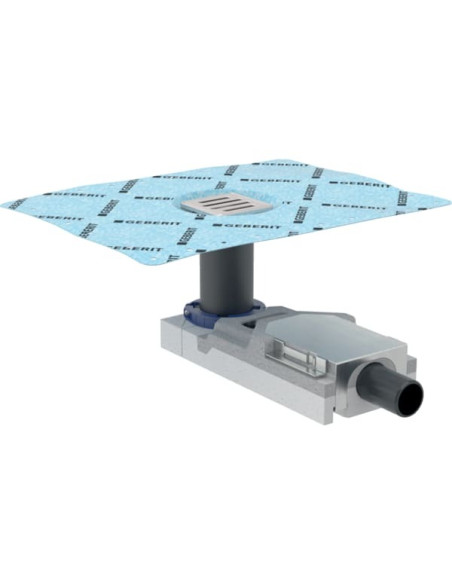

Geberit Floor Shower Siphon, for screed height flush with drain funnel 65–90 mm
SUMMARY OF FEATURES:
Type: Floor shower siphon
Manufacturer: Geberit
Suitable for tile thicknesses on the floor of 2–30 mm
Pre-assembled waterproof sheet
Grating adjustable in height, inclination and offset
EPS base body for sound insulation and siphon housing
Resistance class K 3 (3 kN)
Water intake above the composite waterproofing
SCOPE OF DELIVERY:
Construction site protection cover with removable edge
Thin bed extension
Comb insert
Undrilled grate holder with compensation ring
Grating
Siphon made of PE-HD
Fastening material
